Mixing Elbow Inspection - August 2012

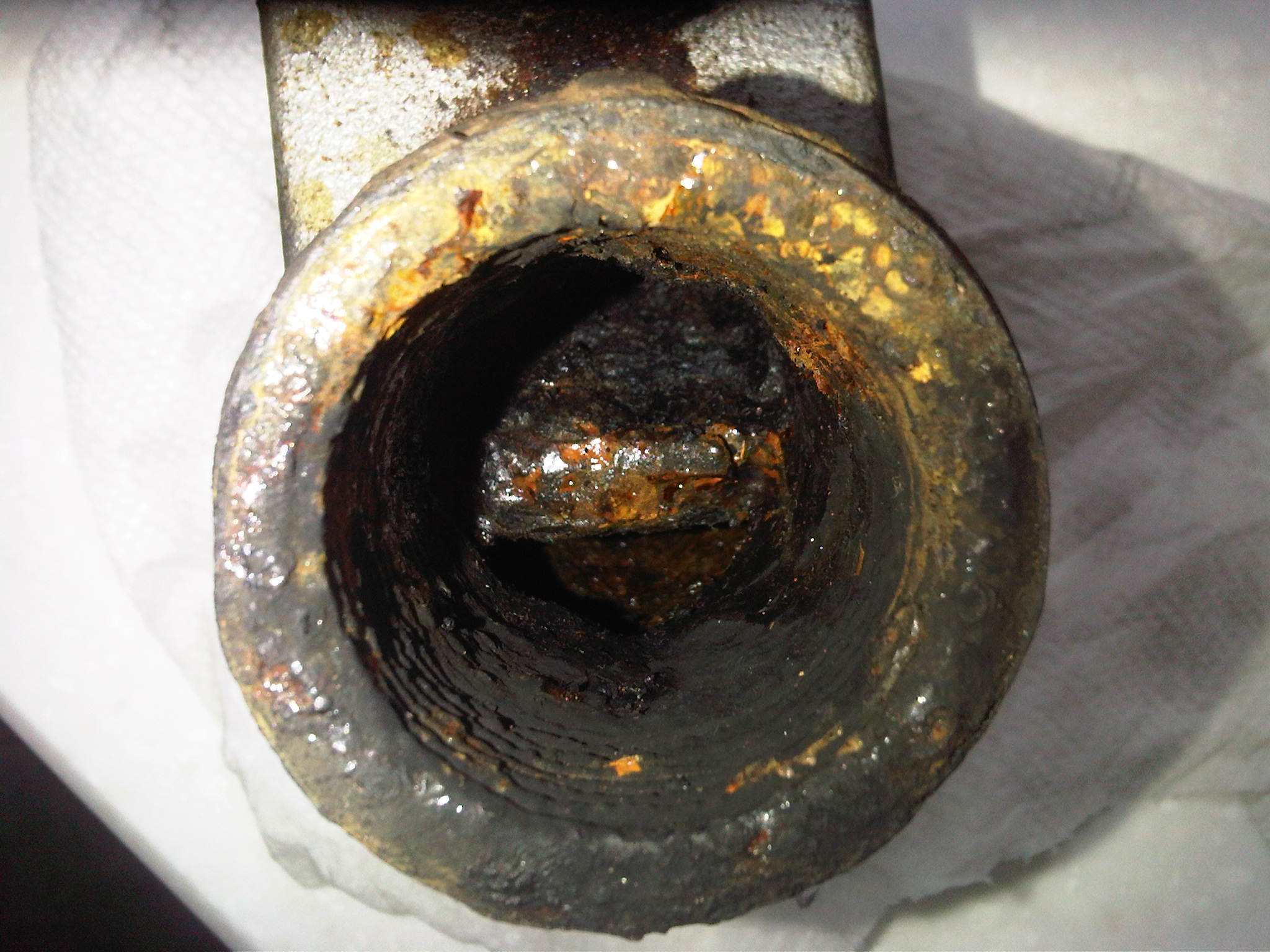

Looking into the outlet of the mixing elbow where exhaust hose attaches.  The top opening is the "cooled" exhaust port (what's left of it) and the bottom opening is the raw water outlet (better but pretty corroded).

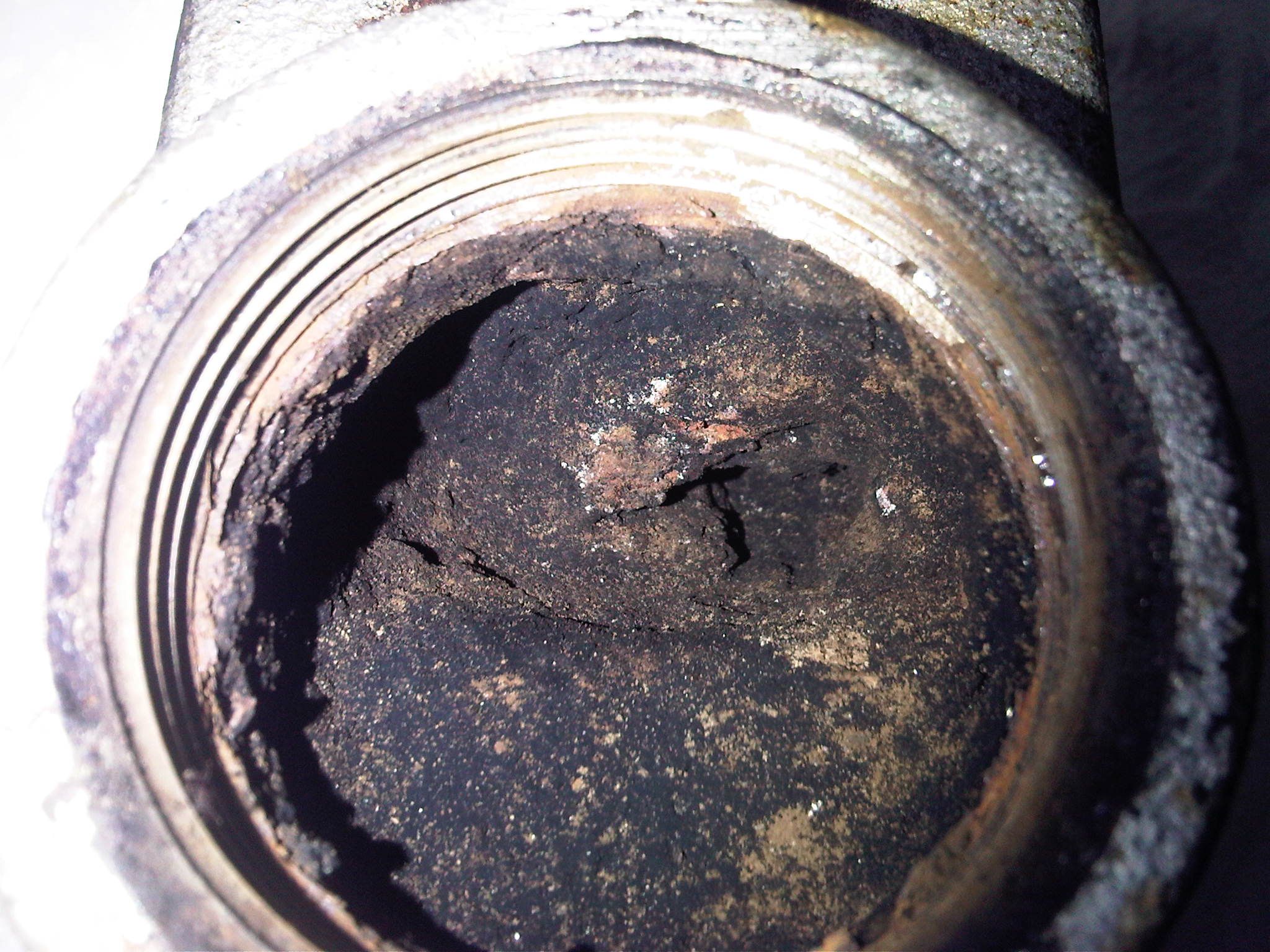

Here's the money shot.  This is the inlet side of the mixing elbow.  Pretty profound carbon slag build-up; about 80% occluded!  Are you impressed?  This will be replaced with a new mixing elbow.
